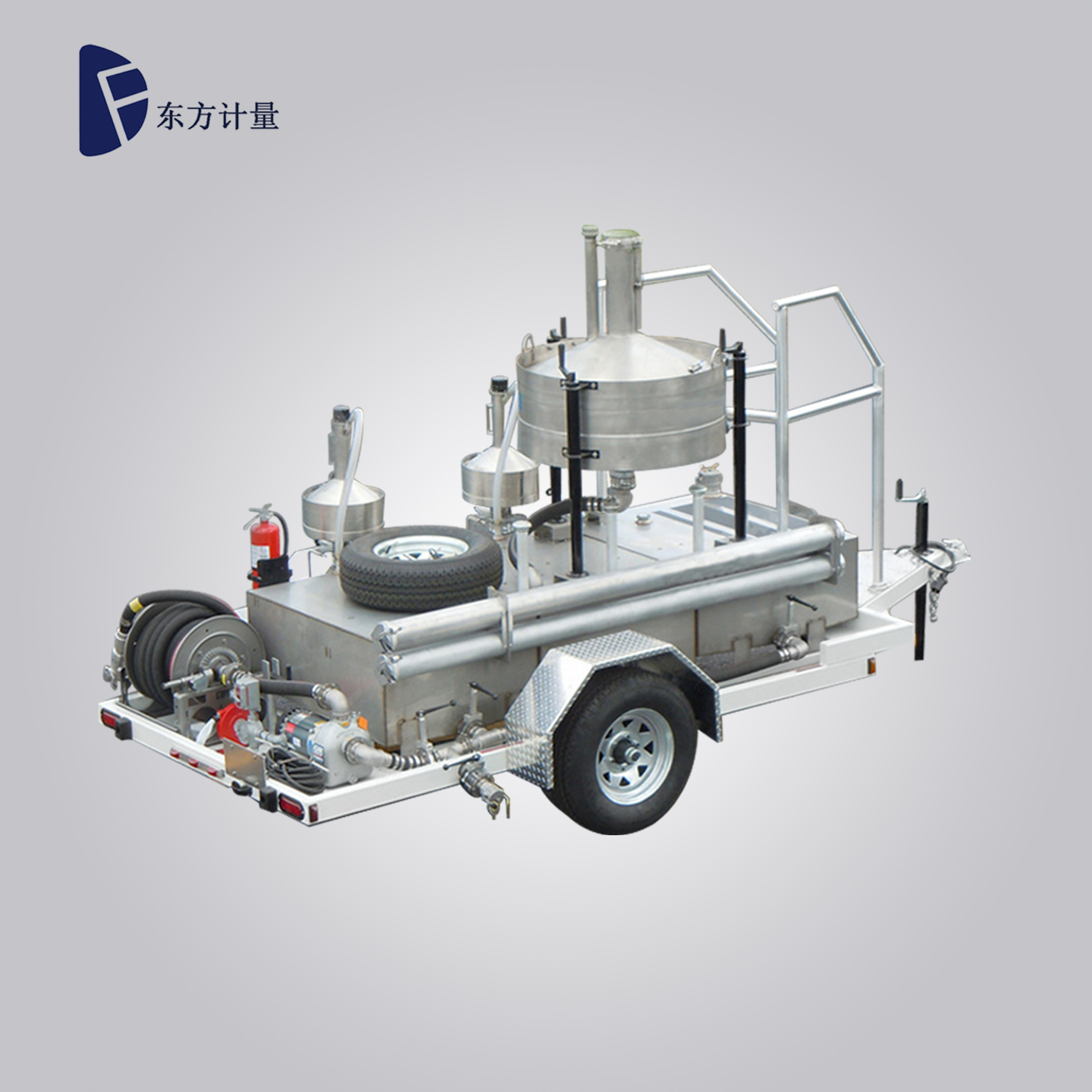

PROVER TANK(仿美)油库专用

PROVER TANK(仿美)油库专用



制造商

海兴县东方计量仪器有限责任公司

品牌

东方计量

产品名称

PROVER TANK

精确度

0.05%

用途

加油站、油库容量流量标定。

产品简介

本公司所生产的PROVER   TANK 经过了欧洲和美国的政府检定,具有CE认证和PEI认证。





·         AISTAR -Calibrated Measures & Volumetric Provers

·         Built to NIST Handbook 105-3 Standards, OIML R-120 and API Manual of Petroleum Measurement Chapter 4

·         Manufactured of Series 304 Stainless Steel, which resists ordinary rusting, can be easily cleaned, resists organic chemicals, no slag and requires no internal coating. Series 316 stainless steel is available upon request

·         Calibration By Standards Traceable to National Institute of Standards and Technology

·         Graduated Neck with scale that is sealed

·         A butterfly valve is standard with the drain at the center point. This is the most versatile unit for use in the field whether emptying into tank, using a pump or gravity discharge. A ball valve is optional. It is used mostly in laboratory applications or where special application exists. The drain would then proceed at a 7 degree decline with the ball valve near the perimeter of the prover

·         Reinforcing bands to prevent distortion of prover when full with liquid and when being transported

·         Two spirit levels with seals are used as level indicators for provers more than 18” diameter, otherwise a circular bulls- eye level is installed.

·         Two Lifting Loops are attached to top band of prover

·         Standard capacities are available from 5 Gallon/20 Liter to 1500 Gallon / 5000 Liter. Call for special volumes.

·         All Stainless Steel Provers

·         Steel or Aluminum skid

·         Three Bolt down - Adjustable Crank Legs to level prover

·         Stainless Steel hinged locking cover for top of neck

·         Another cover is extended to protect the Gauge Glass from accidental breakage and can be secured with a lock for safety.

·         Sight flow indicator for ob- serving fluid flow down- stream of the shut-off valve.

    质量和售后服务承诺

一、        质量保证条款


1
、公司已引进ISO9001-2000质量体系设计、开发、生产、和服务的质量保证模式,建立内部质量保证体系,生产、安装全过程受控;

2、严格对主要材料供应商和零配件供应商的专业化程度和市场美誉度、资信程度进行全方位评估;

3、先进的产品生产设备以及与之相配套的先进的生产工艺、严格而科学的管理创造出东方优良品质;

4、所有安装维护人员均有公司派出,工程管理实行项目负责人制。


二、售后服务承诺

凡是我公司所售计量仪器设备在一年内发生下列情况,实行无条件退(换):

1、材料断裂、变形;

2、碳素钢材质的出现开焊、锈迹、掉漆;

3、不符合国家计量检定规程制作要求的;

4、属于产品本身原因的及其他情况。


   如在三年内出现质量问题,免费维修、长期维护,在接到电话
48小时内我公司保证派技术人员到达现场解决。


售后服务热线:
0317-550446624小时接听)
